Thetford Flue Extension Kit to suit N304, N501, N504 and N604

Thetford Flue kit for Thetford fridges.

Required for installation of Thetford N300, N400, N500 and N600 series absorption fridge. Used in conjunction with upper and lower vents (separate parts)

Features:
The kit contains the components listed below and the instructions for fitting the flue and vents suits all N300 series fridges
Some earlier Thetford fridges had a smaller dia. Flue that will not fit.
Suits models since approx. 2013

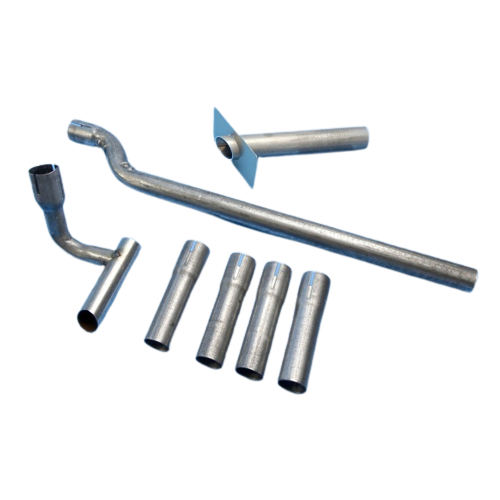

Kit includes:
Lower Flue extension (has a bend and slots to fit over the diffuser wire in the fridge flue)
4 Flue extensions (use only those needed)
T-Cap interface (curved pipe without slots)
Flat aluminium vent plate (prevents flue gas re-entering upper vent)
Aluminium T-Cap (also has a small flat vent locating plate)

Specifications:
Model: T632194, 631013
Brand: Thetford
Barcode: 610848152917
Thetford part number 637085
