AL-KO Caravan Side Lift Jack Kit, 2000kg
Genuine Al-Ko Replacement Side Lift Jack Kit (Up to 2000kg)

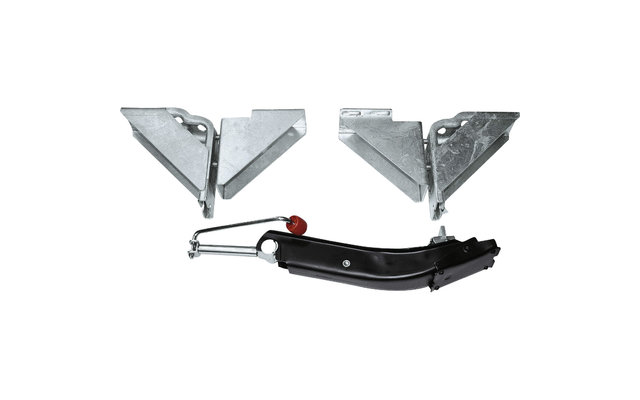

This kit includes a side lift jack, two pairs of galvanized steel brackets, and all necessary fixings for mounting to the Al-Ko chassis using existing mounting holes.
Key Features:
- Each bracket supports up to 1000kg, making this kit suitable for caravans with a maximum weight of 2000kg.
- Compatible only with the Al-Ko 2000kg side lift jack or a 2000kg scissor jack using dedicated jacking points.
Specifications:
Max Load Capacity: 1000kg per bracket
Suitable for Trailers with Max Permitted Total Weight: 2000kg

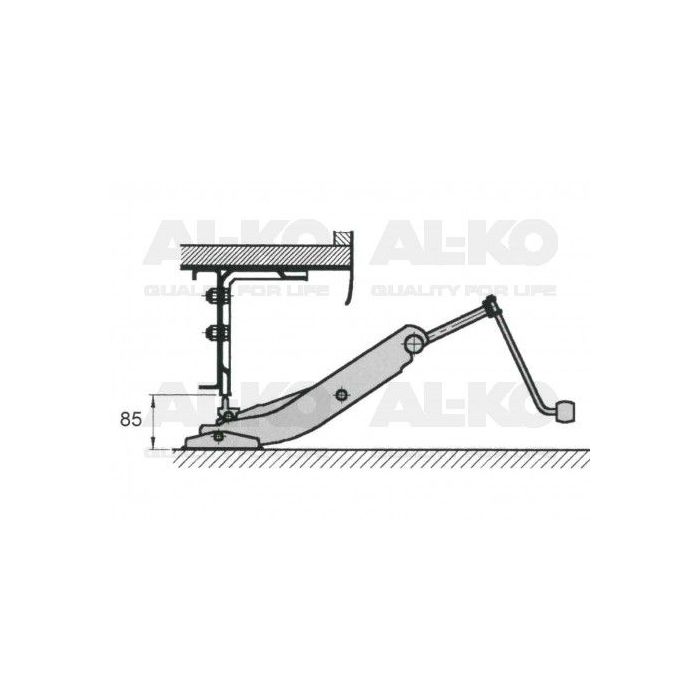

Starting Height: 85mm
Lifting Range: 290mm

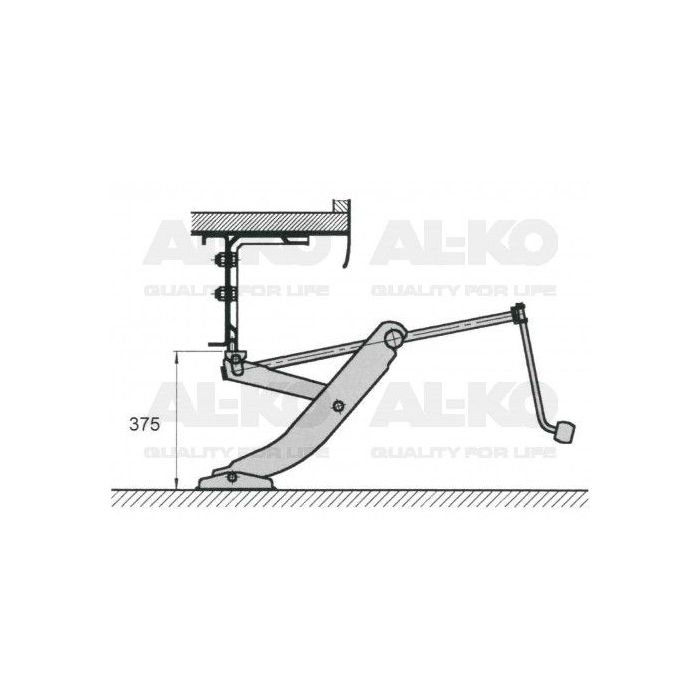

Final Height: 375mm
Weight: 5.5kg
Contents:
1x Side Lift Jack
2x Corner Supports
2x Jack Stands with Insert Opening
1x User Manual
AL-KO Part Number: 1222530 / 1 222 530
EAN: 4003718034981
This kit includes a side lift jack, two pairs of galvanized steel brackets, and all necessary fixings for mounting to the Al-Ko chassis using existing mounting holes.
Key Features:
- Each bracket supports up to 1000kg, making this kit suitable for caravans with a maximum weight of 2000kg.
- Compatible only with the Al-Ko 2000kg side lift jack or a 2000kg scissor jack using dedicated jacking points.
Specifications:
Max Load Capacity: 1000kg per bracket
Suitable for Trailers with Max Permitted Total Weight: 2000kg
Starting Height: 85mm
Lifting Range: 290mm
Final Height: 375mm
Weight: 5.5kg
Contents:
1x Side Lift Jack
2x Corner Supports
2x Jack Stands with Insert Opening
1x User Manual
AL-KO Part Number: 1222530 / 1 222 530
EAN: 4003718034981
