Jokon Multiple Function Tail Light L 3000 R/H

Jokon 10.2200.021 – BBSNWDR 3000-RH Multiple Function Rear Light (Right Hand – Triangle)

Approval: E1-03026

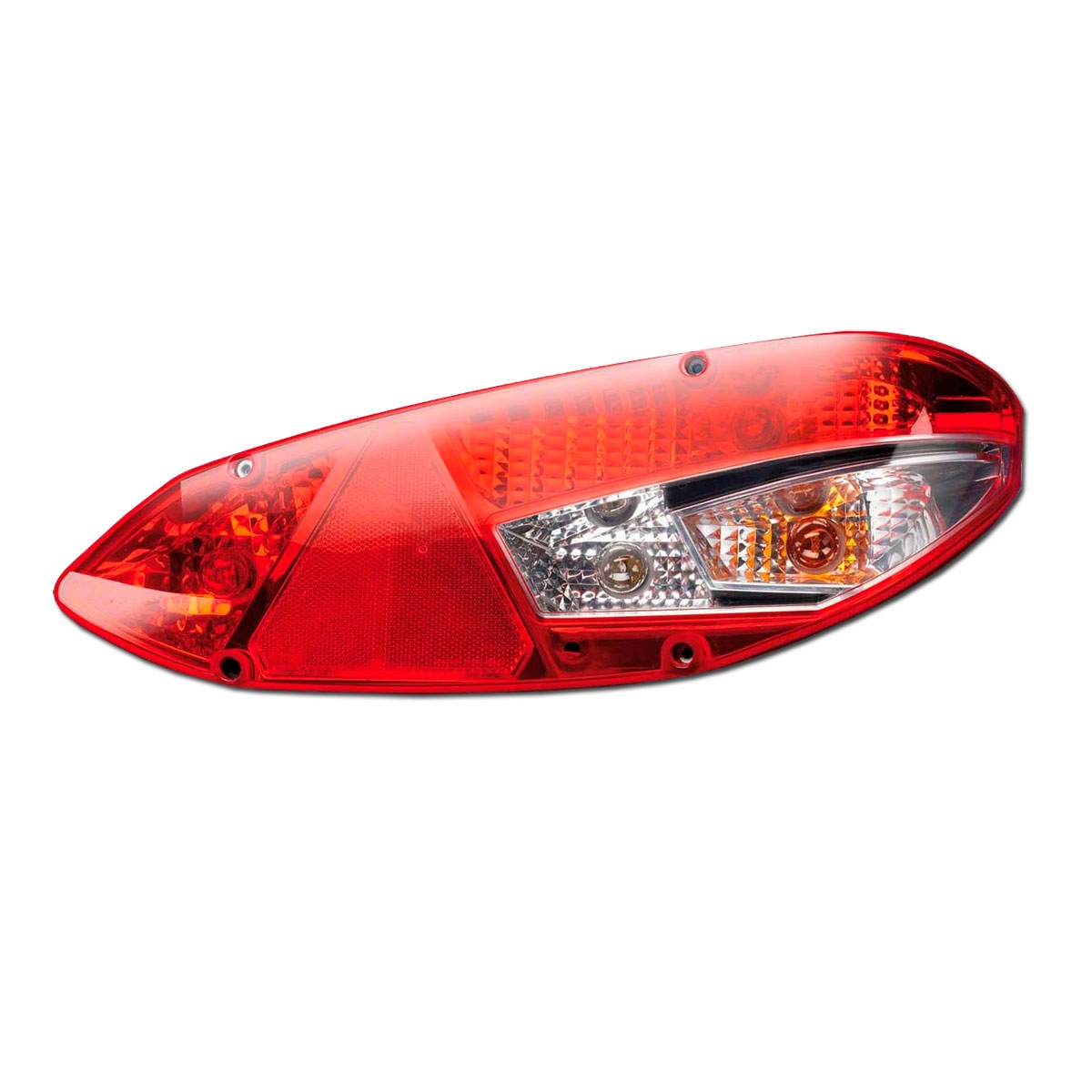

The Jokon BBSNWDR 3000-RH is a high-quality, triangular right-hand multifunction rear light designed for caravans, trailers and other recreational or utility vehicles. It features a durable two-colour polycarbonate (PC) lens in red and clear, paired with a robust grey PC housing for long-lasting reliability.

Designed for front mounting using four screws (e.g. ST 4.8), this rear light is supplied complete with bulb holders and bulbs, allowing for quick and straightforward installation. The lens is clearly marked with Jokon E1-03026, confirming compliance with road approval standards.

Installed on some newer models of Swift, Sterling and Sprite caravans.

Functions:

- Rear / tail light
- Indicator
- Brake light
- Reverse light
- Rear fog light
- Integrated reflex reflector

Key Features:

- Triangular right-hand multifunction rear light
- Front-mounted design using 4 screws (e.g. ST 4.8)
- Two-colour polycarbonate lens (red / clear)
- Grey polycarbonate housing
- Supplied complete with bulb holders and bulbs
- Angular connector for easy electrical connection
- IP55 rated – protected against dust and water ingress

Technical Specifications:

Voltage: 12 V
Power: 21 W / 5 W
Bulbs: P21/5W (x2), P21W, PY21W
Connection: Angular connector
Weight: 0.80 kg
Lens marking: Jokon E1-03026
Part number: Jokon 10.2200.021
Model: Jokon BBSNWDR 3000-RH
EAN: 4045034103507
