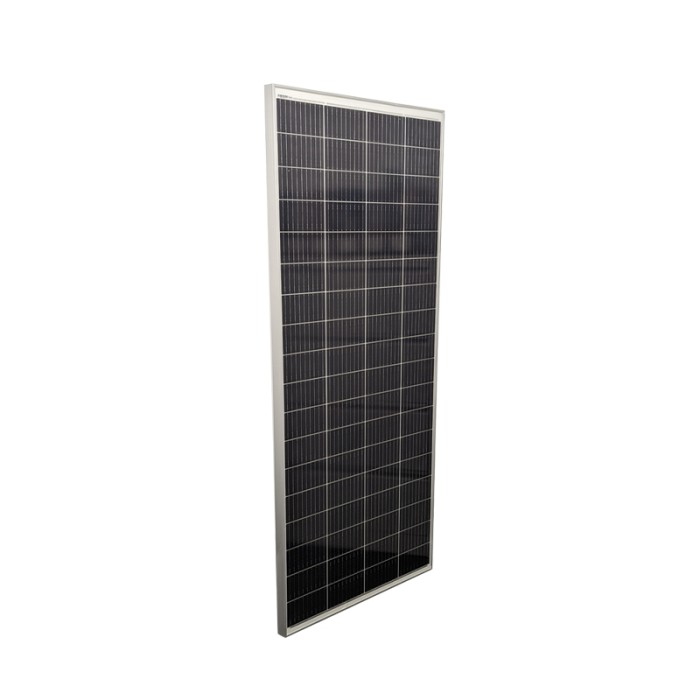

Sphere 210w V2 Monocrystalline Twin Cell Solar Panel - 1480x670mm
Designed in Australia, the Sphere 210W Fixed Solar Panel features advanced Twin Cell Technology to maximise solar performance in real-world caravan, motorhome, and RV applications.

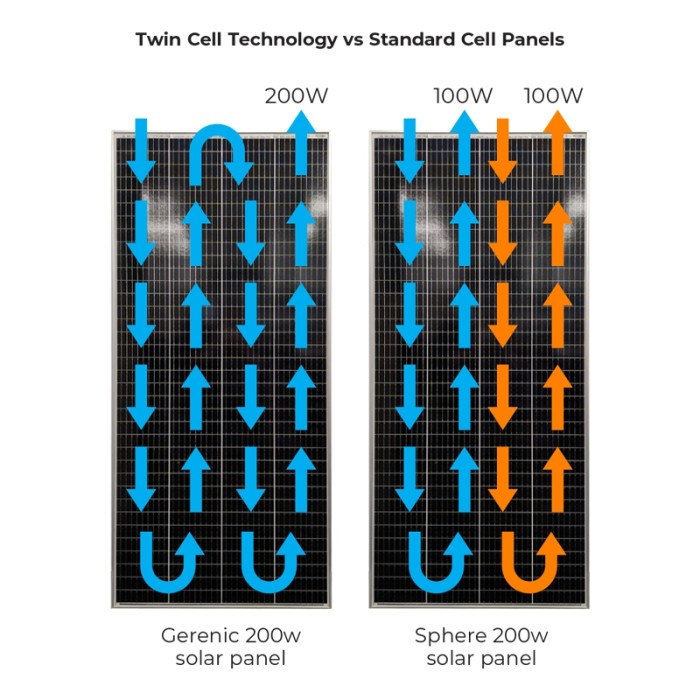

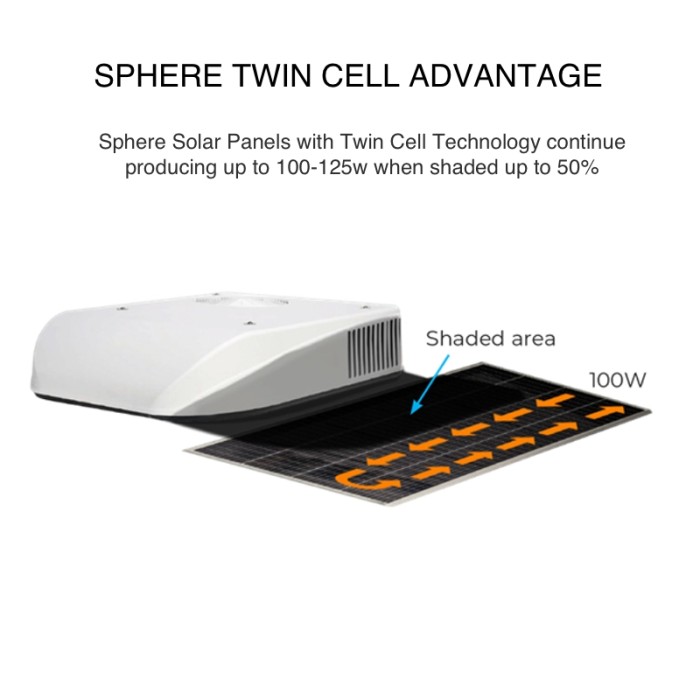

Traditional solar panels can suffer significant power loss when partially shaded by roof-mounted accessories such as air conditioners, antennas, roof vents, or satellite systems. Sphere's innovative Twin Cell design effectively divides the panel into two independent sections operating in parallel. This allows one side of the panel to continue producing power even when the other side is shaded, significantly reducing the performance losses commonly experienced with conventional solar panels.
With high-efficiency monocrystalline cells, durable tempered glass construction, and an anodised aluminium frame, this panel is built to deliver reliable off-grid power in demanding outdoor conditions.
Features:
- Advanced Twin Cell Technology reduces the impact of partial shading and improves overall energy production.
- High-efficiency monocrystalline cells deliver up to 210W of power from a compact footprint.
- Parallel cell design allows one half of the panel to continue operating efficiently when the other half is shaded.
- Anodised aluminium frame resists corrosion and includes pre-drilled mounting holes for easy installation.
- Integrated bypass diodes help minimise power losses caused by shading.
- Anti-reflective, high-transparency tempered glass maximises light absorption while providing excellent durability.
- IP65-rated junction box for reliable weather resistance.
- Ideal for caravans, motorhomes, RVs, marine, and off-grid applications.
Specifications:
Model: 500-06251
Brand: Sphere
Peak Power Output: 210W
Power Output Tolerance: ±3%
Maximum Power Voltage (Vmp): 19.84V
Maximum Power Current (Imp): 10.94A
Short Circuit Current (Isc): 10.94A
Open Circuit Voltage (Voc): 23.01V
Maximum System Voltage: 1000V DC

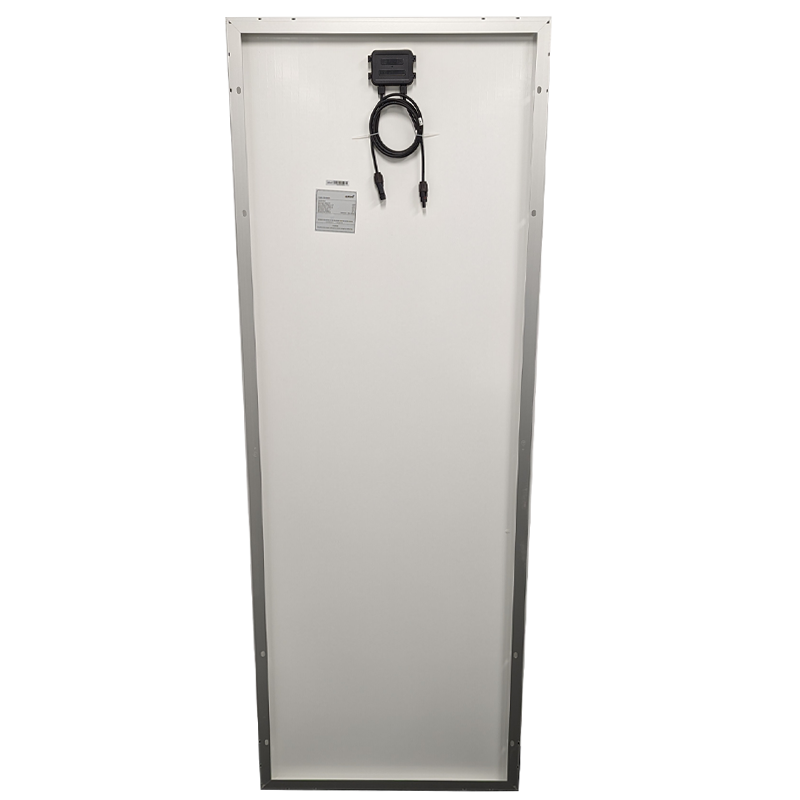

Junction Box: IP65 rated with 0.9m of 4mm² solar cable fitted with MC4 connectors
Number of Cells: 72 (4 × 18)
Dimensions: 1480 x 670 x 35mm
Weight: 11kg
Traditional solar panels can suffer significant power loss when partially shaded by roof-mounted accessories such as air conditioners, antennas, roof vents, or satellite systems. Sphere's innovative Twin Cell design effectively divides the panel into two independent sections operating in parallel. This allows one side of the panel to continue producing power even when the other side is shaded, significantly reducing the performance losses commonly experienced with conventional solar panels.
With high-efficiency monocrystalline cells, durable tempered glass construction, and an anodised aluminium frame, this panel is built to deliver reliable off-grid power in demanding outdoor conditions.
Features:
- Advanced Twin Cell Technology reduces the impact of partial shading and improves overall energy production.
- High-efficiency monocrystalline cells deliver up to 210W of power from a compact footprint.
- Parallel cell design allows one half of the panel to continue operating efficiently when the other half is shaded.
- Anodised aluminium frame resists corrosion and includes pre-drilled mounting holes for easy installation.
- Integrated bypass diodes help minimise power losses caused by shading.
- Anti-reflective, high-transparency tempered glass maximises light absorption while providing excellent durability.
- IP65-rated junction box for reliable weather resistance.
- Ideal for caravans, motorhomes, RVs, marine, and off-grid applications.
Specifications:
Model: 500-06251
Brand: Sphere
Peak Power Output: 210W
Power Output Tolerance: ±3%
Maximum Power Voltage (Vmp): 19.84V
Maximum Power Current (Imp): 10.94A
Short Circuit Current (Isc): 10.94A
Open Circuit Voltage (Voc): 23.01V
Maximum System Voltage: 1000V DC
Junction Box: IP65 rated with 0.9m of 4mm² solar cable fitted with MC4 connectors
Number of Cells: 72 (4 × 18)
Dimensions: 1480 x 670 x 35mm
Weight: 11kg
Price:
NZ$ 347.00 including GST
Product Code:
CTC500-06251
