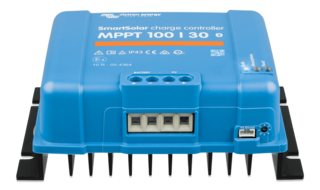

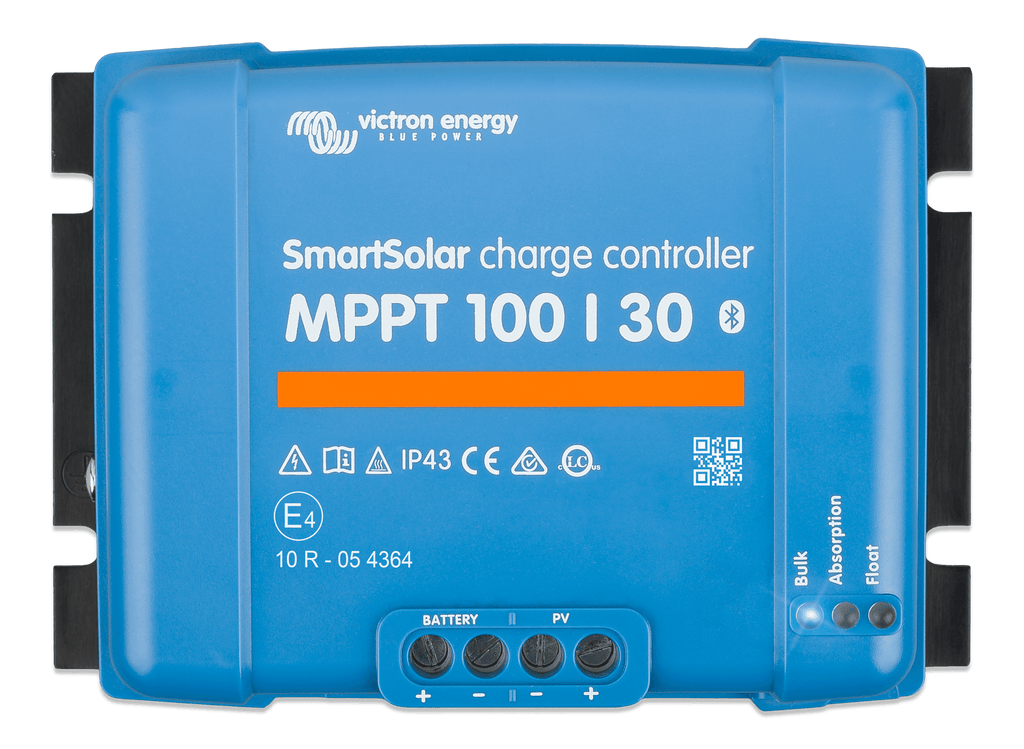

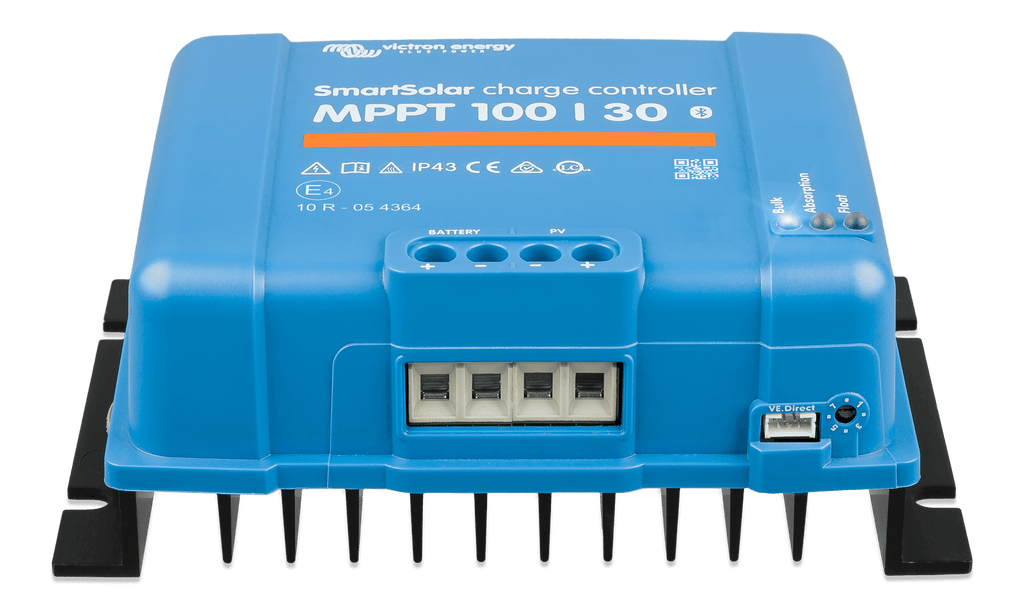

Victron SmartSolar MPPT 100/30 Solar Charge Controller (12/24V – 30A)

Victron SmartSolar MPPT 100/30 Solar Charge Controller (12/24V – 30A)

Get the most from your solar panels with the Victron SmartSolar MPPT 100/30. Designed for 12V and 24V battery systems, this advanced MPPT solar charge controller can increase solar energy harvest by up to 30% compared to traditional PWM controllers, helping you charge your batteries faster and more efficiently—even in less-than-ideal weather conditions.

Featuring intelligent 3-stage charging, adaptive battery management and built-in Bluetooth, the SmartSolar 100/30 makes it easy to monitor and configure your solar system directly from your smartphone using the VictronConnect app. Suitable for lead-acid, AGM and lithium batteries, it's an ideal choice for caravans, motorhomes, boats and off-grid power systems.

Features:
- MPPT technology maximises solar energy harvest, delivering up to 30% more charging efficiency than PWM controllers.
- Compatible with 12V and 24V battery systems with automatic voltage detection.
- 30A charging capacity with support for up to 440W (12V) or 880W (24V) of solar panels.
- Adaptive 3-stage charging (Bulk, Absorption and Float) optimises charging performance while extending battery life.
- BatteryLife function helps prevent batteries from remaining partially charged, improving long-term battery health.
- Built-in Bluetooth allows wireless setup, monitoring and firmware updates via the free VictronConnect app.
- View real-time and historical data including battery voltage, charging current, solar panel performance and load output.
- Programmable battery settings to suit lead-acid, AGM and lithium battery chemistries.
- Load output with low-voltage disconnect protects batteries from excessive discharge.
- VE.Direct communication port for integration with Victron GX monitoring systems.
- Comprehensive electronic protection including over-current, over-temperature, over-voltage, reverse polarity and short-circuit protection.

Specifications:
Battery Voltage: 12V / 24V (automatic selection)
Maximum Charge Current: 30A
Maximum PV Power: 440W (12V), 880W (24V)
Maximum PV Open Circuit Voltage (Voc): 100V
Maximum PV Short Circuit Current: 35A
Peak Efficiency: 98%
Charging Voltages:
Absorption: 14.4V / 28.8V (adjustable)
Float: 13.8V / 27.6V (adjustable)
Continuous Load Output: 30A
Operating Temperature: -30°C to +60°C
Terminal Size: 16mm² (AWG6)
Ingress Protection:
Electronics: IP43
Connection Area: IP22
Compatible Battery Types: Flooded Lead-Acid, AGM, Gel and Lithium
Dimensions: 100 × 113 × 60mm
Weight: 1.3kg
Victron Part Number: SCC110030210
