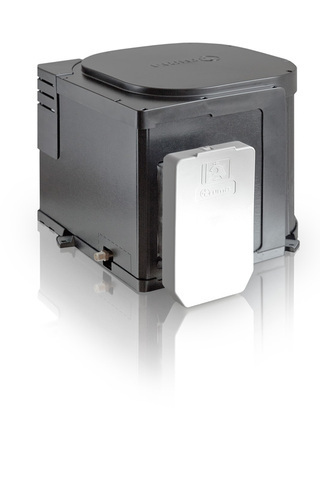

Truma UltraRapid Gas/240V Water Heater 14Ltr - With Install Kit

Showering, dishwashing, washing your hands - the Truma UltraRapid Hot Water System HWS provide a reliable supply of hot water in leisure vehicles. Truma has now taken the development of the well-tried Boiler further and adapted it to the continuously increasing demands of the standards. The new Truma UltraRapid HWS impresses with increased heating power, compact dimensions and new black design.

Features:

- Insulation prevents heat loss
- High pressure resistance of the Truma gas water heater (all submersible and pressure pumps up to 2.8 bar can be used)
- Safety ensured with electronic control components and overpressure valve
- Stainless steel container
- Low gas consumption with high efficiency
- Option to use on gas only, 240V or mixed mode
- Very compact, requires little installation space
- All fittings included are JG push-in connections for easier and faster installation

Specifications:

Energy sources: LPG
Power supply: 230v
Output of electric heating element: 1415W
Gas output: 1200 W
Power consumption (at 230V): 5.7/5.9A
Water capacity: 14 litres
Heating time from approx. 20°C to approx. 65°C:
approx. 45 min. (gas mode)
approx. 40 min. (electric mode)
approx. 28 min. (mixed mode)
Gas consumption: 96g/h
Weight empty: approx. 8.1kg

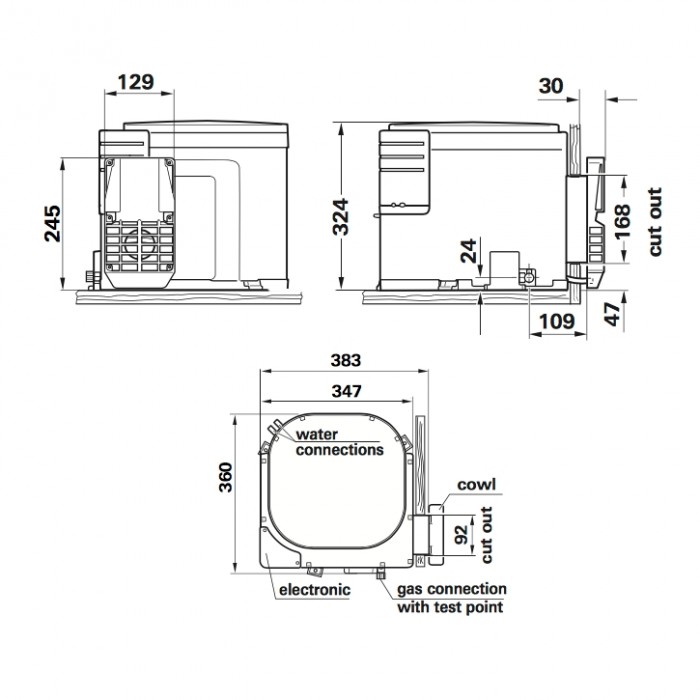

Dimensions: 360 x 383 x 324mm (LxWxH)
Power consumption (at 12V):
Ignition: 0.16A
Heating: 0.12A
Stand-by: 0.05A
Temperature limit: 70°C
Pump pressure: max. 40psi

IMPORTANT:
The hot water cylinder needs to be connected by a certified gas fitter and a new Gas Certification for the RV needs to be issued. If the unit can not be plugged in to 240 V, a certified electrical Inspector needs to connect the 240 Volt and also issue a Electrical Certificate.
