Powertech Tracer2206AN 20 Amp MPPT Solar Charge Controller

Powertech Tracer2206AN 20 Amp MPPT Solar Charge Controller
Tracer-AN series (10A-40A) MPPT charge controller is not only capable of up to 99.5% tracking efficiency in any situation
but also provides up to 98% conversion efficiency. This crucial device automatically detects the 12V/24V system and
supports multiple battery types including sealed and lithium batteries. The basic symbols displayed on the controller LCD
screen helps to diagnostic the system faults simply. With intelligent protection features, this controller can be easily
performed in many areas such as RV, communication stations, household systems, and field monitoring, etc.

Features:

- MPPT tracking efficiency above 99.5%
- Maximum charge conversion efficiency as high as 98%
- Support lead-acid and lithium-ion batteries
- Multiple load work modes
- Charging power and current limitation function
- High-temperature charging power derating function
- Standard Modbus communication protocol with RS485 interface
- Real-time energy statistics function

System nominal voltage: 12/24VDC
Rated charge current: 20A
Rated discharge current: 20A
Battery voltage range: 8~32V
MPP voltage range: (Battery voltage +2V)~36V
Max. PV input power: 260W/12V, 520W/24V
Self-consumption: ≤12mA
Discharge circuit voltage drop: ≤0.23V
Temperature compensate coefficient: -3mV/℃/2V (Default)
Grounding: Common negative
RS485 interface: 5VDC/200mA
Working environment temperature: -25℃~+45℃(100% input and output)
Storage temperature range: -20℃~+70℃
Relative humidity: ≤95%, N.C.
Enclosure: IP30
Dimension: 220 x 154 x 52mm
Weight: 0.94kg

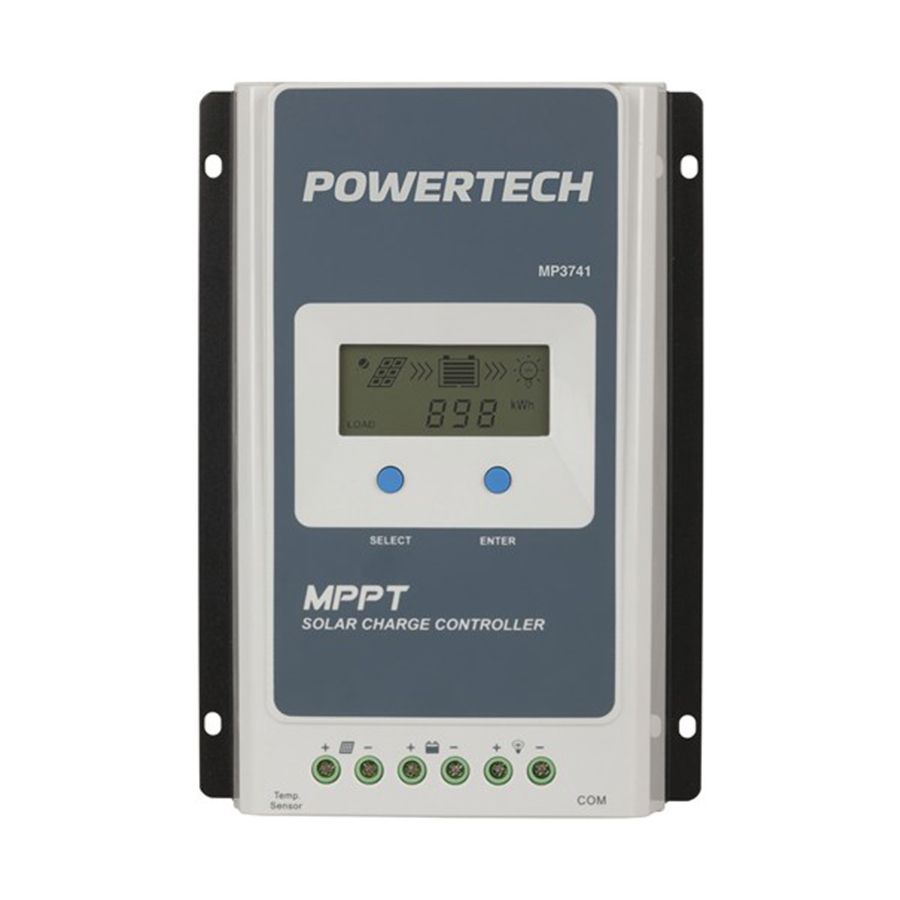

Please note: product may slightly vary in design to what is shown in the photo.
Price:
NZ$ 245.00 including GST
